Raw material
Al-plate: finished products thickness: 1.1 2.0mm,
raw material Al plate thickness: 1.4 2.5mm
Structure

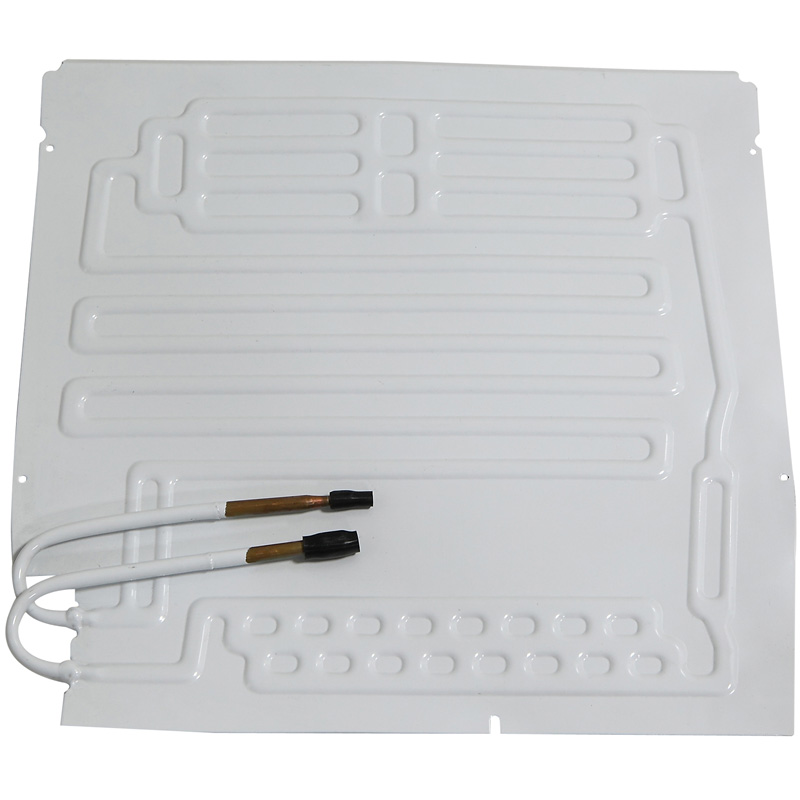

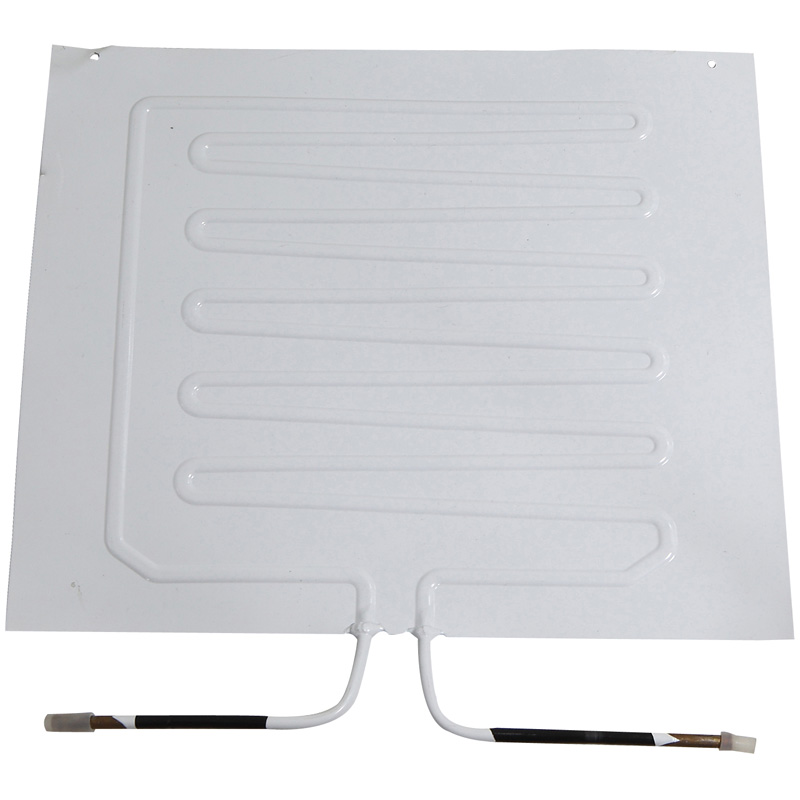

Double side rollbond evaporator,
single side rollbond evaporator,
part single side rollbond evaporator
Key process
Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical Standards
1) Size: width 590 (max), length 2050 (max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance
1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134a & CFC cooling system.
3) Can satisfy the cooling capability requirements.
Performance
3.5 million sets per year (10000 sets per day)
R134a Cooling System
