Laboratories Water Cooled Refrigerator Compressor Condenser Unit Coil
  • T-666

  • RETEKOOL

  • 8418999990

Availability:
Quantity:

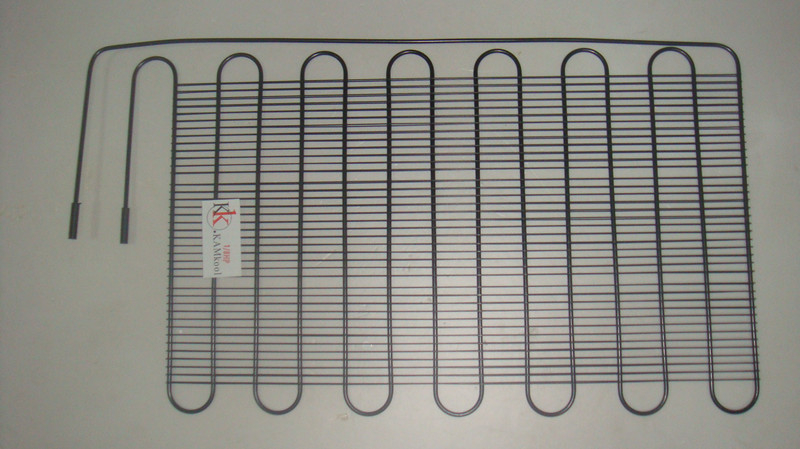

 Laboratories Water Cooled Refrigerator Compressor Condenser Unit Coil


Main material : 1. Bundy Tube : Φ4.76 ,Φ6 ,Φ6.35,Φ8,Φ9.52 , Wall thickness : 0.7mm

                              2.Low carbon steel wire : Φ1.0~1.6mm

                              3.Bracket : Steel Plate (SPCC) ,thickness 0.6~1.5mm

                              4.Steel plate : SPCC , thickness 0.3~0.4mm



 Structure : 1. Flate type of wire on tube condenser used at the back

                      2. Bended or spiral type of wire on tube condenser used at the botton

                      3. wrapped type of tube plate condenser



 Performance : 1. Surface with electrophoresis coating to prevent corrosion

                             2. Inner cleaness can meet requirement of R134A ,CO2 , cooling system

                             3. Can meet different cooling capacity requirement .



 Main production process : tube bending — welding —fix the bracket— welding inle and outlet tube —leakage test—              coating—floding and bending —inspection—package



 Technical ability : wire pitch »5mm


 Specification of R134a refrigerator
   Residual moisture       ≤20mg/
   Residual impurity       ≤30mg/
   Residual mineral oil    ≤7mg/
   Residual chlorine       ≤0.3mg/
   Residual paraffin       ≤0.2mg/

 Specification of coating
 Coating thickness thickness of cathodic electrophoresis Coating≥18μm;
 Hardness of coating   ≥2H
 Impact of coating    50cm .kg/cm impact, no crack
 Adhesion of coating   ≥two grade
 Flexibility of coating Around R=3D bebd 180°,no crack or no fall off
 Color tolerance of     E≤1.5
 Corrosion resistant (salt spray GB2423) ≥150h.

 We can provide the product according customer's drawing or samples.


       MODEL        SPECIFICAION        ROWS        LENGTH*WIDT(MM)
       PRCK-01        1/3HP        26        135*452
       PRCK-02        1/4HP        22        881*452
       PRCK-03        1/5HP        18        796*452
       PRCK-04        1/6HP        14        639*452
       PRCK-05        1/8HP        14        595*376
       PRCK-06        1/10HP        10        374*376
       PRCK-07        1/1HP        8        292*376
