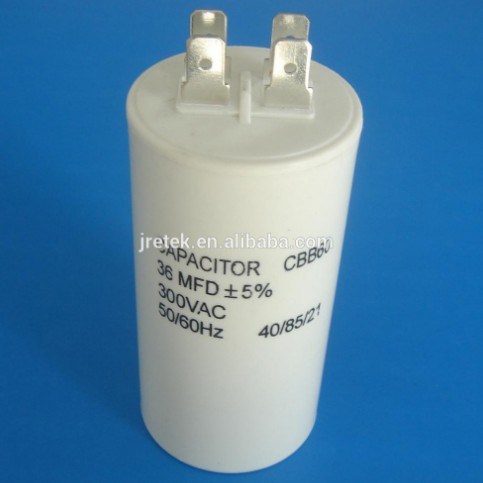

cbb60
customized
8532259
| Availability: | |
|---|---|
| Quantity: | |
Metal case,plastic insulation. insulation oil impregnation, with inner pressure protection device, safe and reliable; small volume,light weight,high insulation resistance,high withstand voltage,low dissipationfactor, good self-healing, stable performance and etc.

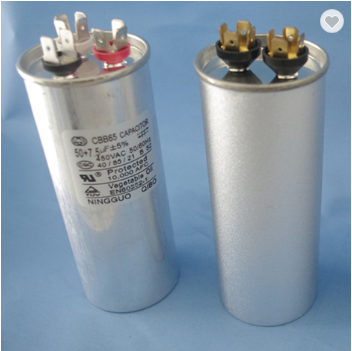

CBB65 air conditioner compressor run capacitor
Used widely in motors,air conditioner ,water pump
sample available
Climatic category | Rate voltage | Testing voltage T-T | Testing voltage T-C | Capacitance tolerance | Dissipation factor |
-25/+70/21 -40/+85/21 | 370/440VAC | 1.75Un/5S (2Un/5S) | 2000V.AC/5s | ±5% (±10%) | ≤0.002 (100Hz) |
Applications:
Run starting in household electric appliances air conditioner,
refrigerator which demand 50/60Hz AC power supply Have
safe protection constrution.
General specificaiton for capacitor:
1. General description:
Broadly applied to running of single-phase AC motors at 50Hz(60Hz)frequency for washedrs and high efficiency compressors of refrigerators etc.
2.Features:
The capacitor takes heavy-edge metallized, AI/Zn pp film or web-like fuse metallized pp film as dieledtrie, its components are assembled in flame-retardant ABS or PBT ey lindrical crust, impregnated with flame-retatdant epoxy resin,It has high reliability and stability.
3.Technical parameter
Standard:GB3667-1997,same as IEC60252:193
Climate type:40/70/21, 40/85/21
Capacitance tolerance: ±5%
Dielectric dissipation factor: tg&≤0.002(50Hz~100Hz)
Life expectancy:3000h(ClassC)or10000h(ClassB)
4.Service condition
Altitude:≤2000m
Residual voltage in application:Less than 10% of rated voltage
Allowed maximum voltage: Less than 1.1 times of rated voltage
Permissible maximum current: Less than 1.3 times of rated current
Metal case,plastic insulation. insulation oil impregnation, with inner pressure protection device, safe and reliable; small volume,light weight,high insulation resistance,high withstand voltage,low dissipationfactor, good self-healing, stable performance and etc.
CBB65 air conditioner compressor run capacitor
Used widely in motors,air conditioner ,water pump
sample available
Climatic category | Rate voltage | Testing voltage T-T | Testing voltage T-C | Capacitance tolerance | Dissipation factor |
-25/+70/21 -40/+85/21 | 370/440VAC | 1.75Un/5S (2Un/5S) | 2000V.AC/5s | ±5% (±10%) | ≤0.002 (100Hz) |
Applications:
Run starting in household electric appliances air conditioner,
refrigerator which demand 50/60Hz AC power supply Have
safe protection constrution.
General specificaiton for capacitor:
1. General description:
Broadly applied to running of single-phase AC motors at 50Hz(60Hz)frequency for washedrs and high efficiency compressors of refrigerators etc.
2.Features:
The capacitor takes heavy-edge metallized, AI/Zn pp film or web-like fuse metallized pp film as dieledtrie, its components are assembled in flame-retardant ABS or PBT ey lindrical crust, impregnated with flame-retatdant epoxy resin,It has high reliability and stability.
3.Technical parameter
Standard:GB3667-1997,same as IEC60252:193
Climate type:40/70/21, 40/85/21
Capacitance tolerance: ±5%
Dielectric dissipation factor: tg&≤0.002(50Hz~100Hz)
Life expectancy:3000h(ClassC)or10000h(ClassB)
4.Service condition
Altitude:≤2000m
Residual voltage in application:Less than 10% of rated voltage
Allowed maximum voltage: Less than 1.1 times of rated voltage
Permissible maximum current: Less than 1.3 times of rated current
